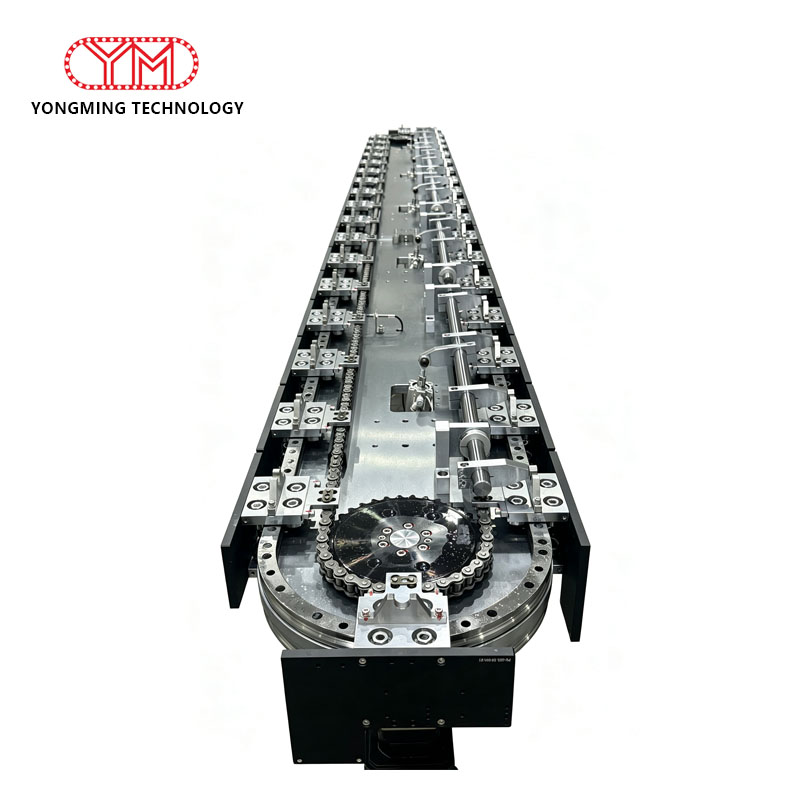

The Elliptical Chain-Driven Circular Guide Transport System is designed for automated production environments that require continuous, repeatable movement of workpieces between multiple processing or assembly stations. By combining a chain-driven transmission mechanism with precision circular and linear guide rails, the system creates a closed-loop conveying path for stable and efficient material handling.
Its elliptical configuration allows workstations to be arranged along both linear and curved sections of the track, making it suitable for production layouts where continuous circulation and efficient use of floor space are important.
Product Overview
This transport system provides a high-precision solution for cyclic conveying, automated assembly, inspection, and processing operations. Carriers or slides move continuously around the closed-loop track, allowing workpieces to pass through different production stations in a predetermined sequence.
The track configuration, number of slides, spacing, and overall dimensions can be customized according to the requirements of individual automation projects.
Main Performance Features
Accurate and Repeatable Positioning
The precision guide system is designed to provide stable positioning performance during repeated production cycles. This makes the transport line suitable for automated operations where consistent workpiece positioning is required at assembly, processing, or inspection stations.
Stable Continuous Movement
The combination of chain transmission and precision guide rails supports smooth carrier movement during long-duration operation. The system is designed to minimize vibration and operating noise while maintaining stable cyclic transportation.
Configurable Track Layout
The elliptical track can be adapted to different production requirements. Customers can specify parameters such as track length, slide quantity, slide spacing, and overall layout to match the available factory space and process arrangement.
Heavy-Duty Continuous Operation
The mechanical structure is designed for continuous cyclic transportation and can support demanding automated production environments. Its robust transmission and guide components are suitable for applications involving frequent repeated movement and long operating cycles.
Adjustable Conveying Speed
The conveying speed can be adjusted according to the requirements of the production process. This allows the transport system to be coordinated with assembly equipment, testing stations, robotic operations, and other automated machinery.
Design Advantages
The closed-loop elliptical configuration provides several advantages for automated production lines:
-
Space-efficient layout: The return path is integrated into the closed-loop system, helping optimize available factory space.
-
Reliable chain transmission: Chain-driven movement provides a practical transmission solution with straightforward maintenance.
-
Precision guidance: Circular and linear guide sections are designed to support controlled and repeatable carrier movement.
-
Modular construction: The system can be configured with different track dimensions and carrier arrangements.
-
High-cycle stability: The structure is designed for repeated circulation in automated manufacturing environments.
-
Automation compatibility: The transport system can be integrated with assembly, inspection, processing, and other automated equipment.
Standard Configuration and Dimensions
The following specifications represent a standard configuration. Actual dimensions can be customized according to the customer's application and production requirements.
| Parameter | Standard Specification |
|---|---|
| Minimum Order Quantity | 1 set |
| Slide Length (A) | 100–140 mm |
| Slide Width (B) | 80 mm |
| Slide Spacing (C) | 340 mm |
| Circular Guideway Diameter (D) | 351 mm |
| Linear Guideway Length (L) | 1372 mm |
| Overall Height (H) | 572 mm |
| Height (h) | 120 mm |
| Shaft Diameter (d) | 22 mm |
| Circular Guideway Diameter Range | 200–600 mm |
| Positioning Method | Cylinder Linkage Positioning / Cylinder Direct-Acting Positioning |
The slide spacing can be specified by the customer, while the length of the linear guideway is determined according to the number of slides and their spacing.
Custom Engineering Options
The standard dimensions shown above are intended as reference configurations rather than fixed specifications for every project. Depending on the application, Yongming (YM) can provide customized transport systems based on the customer's production requirements.
Possible customization areas include:
-
Overall track dimensions
-
Linear guideway length
-
Circular guideway dimensions
-
Number of slides
-
Slide spacing
-
Carrier configuration
-
Production line layout
-
Positioning configuration
-
Integration requirements
This approach allows the transport system to be adapted to different workstation arrangements, product dimensions, cycle times, and factory layouts.
Positioning Solutions
The system supports two positioning configurations:
Cylinder Linkage Positioning:
A cylinder linkage mechanism can be used to achieve controlled positioning of the carrier at designated workstations.
Cylinder Direct-Acting Positioning:
A direct-acting cylinder configuration provides another positioning option for applications requiring controlled stopping and positioning along the transport path.
The appropriate positioning method can be selected according to the process requirements and equipment configuration.
Typical Applications
The elliptical circular guide transport system can be integrated into various automated manufacturing and testing environments, including:
Automotive Component Assembly
Suitable for automated transportation of automotive components between assembly, inspection, fastening, and processing stations.
Consumer Electronics Manufacturing
The controlled cyclic movement of carriers can support assembly and testing operations for electronic products and components.
Medical Device Processing
The system can be incorporated into automated production and inspection lines for medical equipment and precision components.
Packaging Automation
Its continuous closed-loop structure can be used for automated product handling, packaging, inspection, and related processes.
Precision Testing Lines
Workpieces can be repeatedly transported between testing stations while maintaining controlled positioning for automated inspection processes.
New Energy Product Assembly
The system can be applied to automated production lines for new energy-related products and components where repeated conveying and workstation integration are required.
Why Choose Yongming?
Yongming specializes in the development and manufacturing of circular guide transport systems for industrial automation.
The company provides an integrated service covering system design, manufacturing, customization, and technical support. By developing the transport configuration around each customer's production requirements, Yongming can provide solutions adapted to specific equipment layouts and automation processes.
Quality control is applied throughout the manufacturing process to support consistent product performance. Technical assistance and after-sales support are also available to help customers with system integration and project implementation.
A Flexible Solution for Automated Production
The Elliptical Chain-Driven Circular Guide Transport System combines a closed-loop track layout, chain-driven transmission, precision guide rails, configurable carriers, and flexible positioning options into one automation transport solution.
With customizable dimensions and layouts, it can be configured for different production lines and integrated with assembly, processing, testing, packaging, and inspection equipment. This makes it a practical choice for manufacturers seeking a stable, repeatable, and space-efficient conveying system for automated production.
