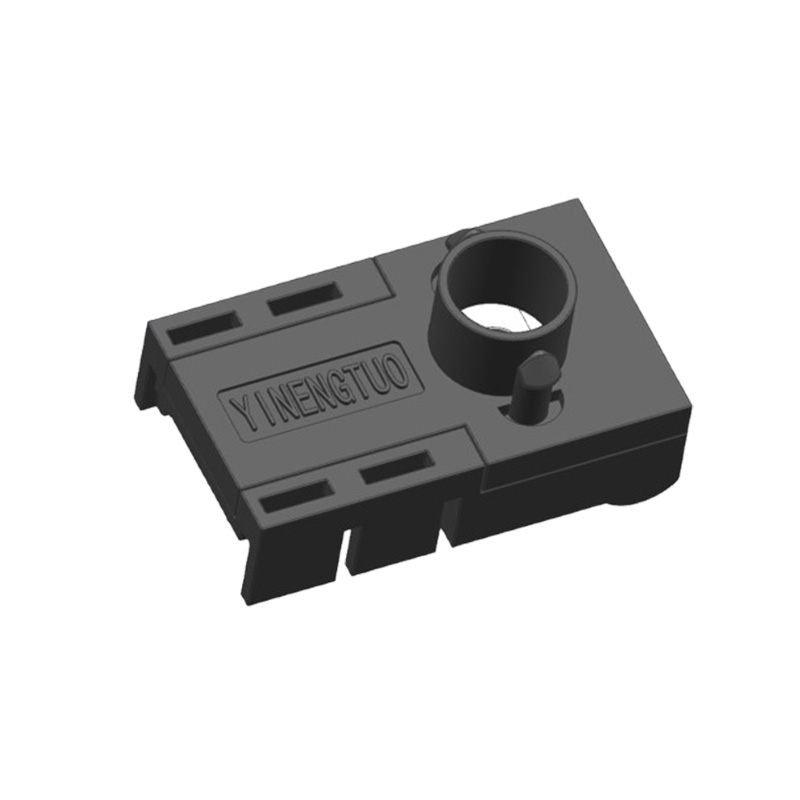

Description
1. Through-hole diameter: 4.2 mm;
2. Fixing screws: M3 or M4 standard screws;
3. Screw torque: 6~8 Kgf.cm (0.6~0.8 N.m);
4. Fixing type: fixes a single transistor (chip);
5. Elastic deformation: 0.5 mm~1.0 mm;
6. Mounting distance: distance from screw hole to the center of the chip is
approximately 15~20 mm;
7. Chip size: 16×10, 20×16 mm (e.g., TO-220, TO-247, etc.);
8. Chip thickness: approximately 3~6 mm;
9. Ambient temperature: -40°C ~150°C;
10. Flame retardant rating: UL94V-0;
11. Housing material: PA+35GF;
12. Spring clip material: spring steel;
13. All materials comply with RoHS requirements;
14. Appearance requirements: no burrs, flash, mold marks, or other defects
affecting product function.
