Description
Wide range of applications: Suitable for twisted wires, parallel wires,
double/single-layer continuous center-wound straps
High production capacity: High rotational speed, production efficiency is 2.5
times that of traditional strap machines
Stable tension: Automatic calculation and tracking of strap tension,
maintaining constant tension from full to empty rolls, no need for manual
adjustment
Precise pitch: Touchscreen sets overlap rate, controlled by PLC, acceleration
and deceleration, and the forming point of the strap during normal operation
remains stable and does not move
Good line arrangement: The line collection arrangement adopts axial
arrangement, the line width and spacing can be set arbitrarily
High quality: Producing high-frequency wire materials such as HDMI, SFP, QSF,
DP, ATA, SATA, SAS, etc., with a 100% pass rate

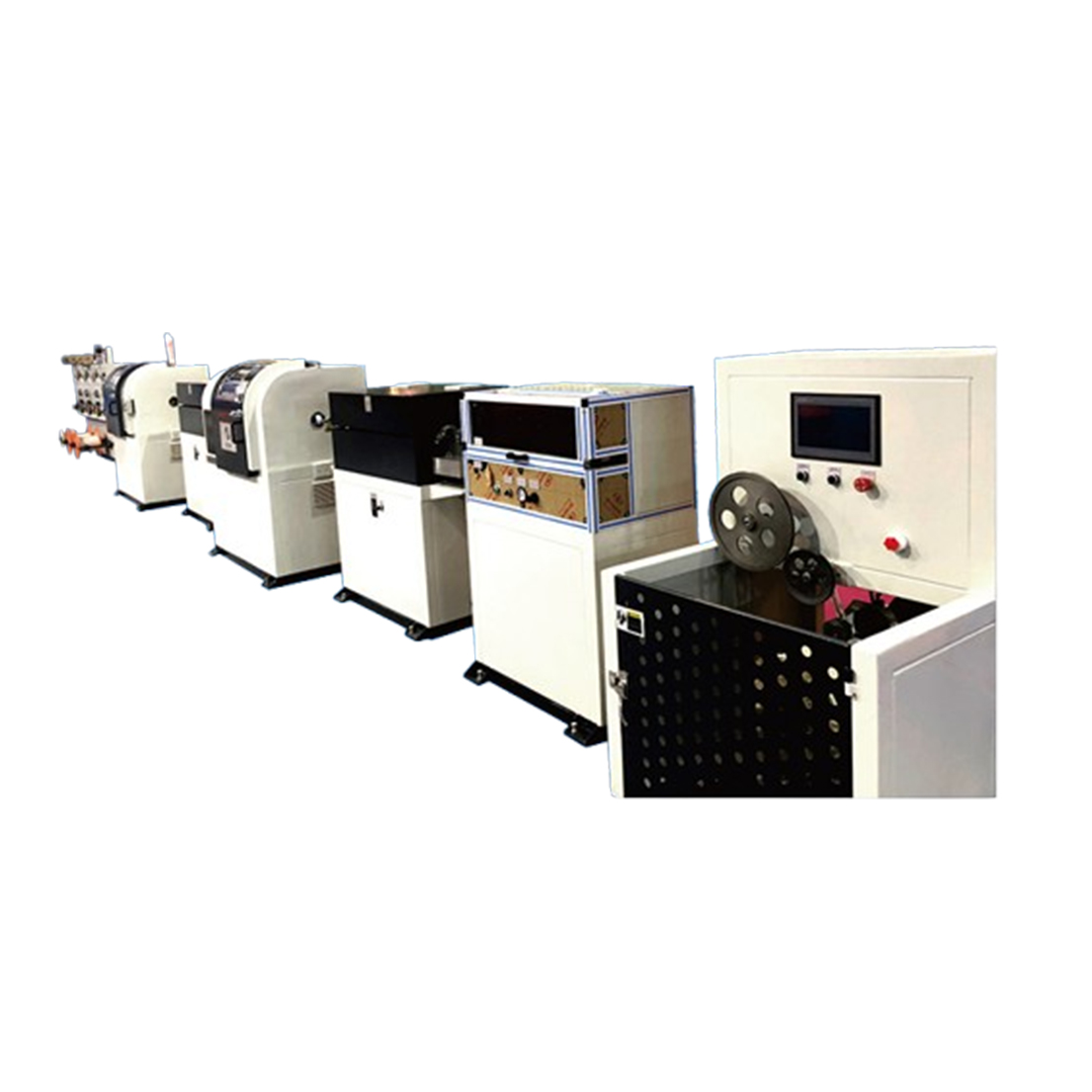

| Model | JH500 | |||
| Machine usage | Used for twisted wire and parallel wire double layers/single layer continuously centering wrapping | |||
| Wire specification | AWG32-AWG20 | |||
| Taping material | Aluminum foil tape、cotton paper tape、transparent tape、mica tape、teflon tape etc | |||
| Rotate speed | MAX 2500rpm/ MAX 20m/min | |||
| Power | 0.75KW Servo motor + controller, with the strap reel and the extraction motor linked together | |||
| Wrapping tension | Wrapping tension automatically calculation and tracking,keep constant from start to end,no need adjustment | |||
| Heating device | Auto flexible type, Omron temperature control,temperature controlled within ±1℃ | |||
| Take-up tension | Take-up tension keep | |||
| Traversiong type | Axis-row type take up,no damage during traversing,distance can be set freely according to the wire specification | |||
| Pay-off type | Straight line slide rail slider heavy hammer tension type power pay-off with variable frequency speed regulation and set the break line protection function | |||
