Description
Products description:

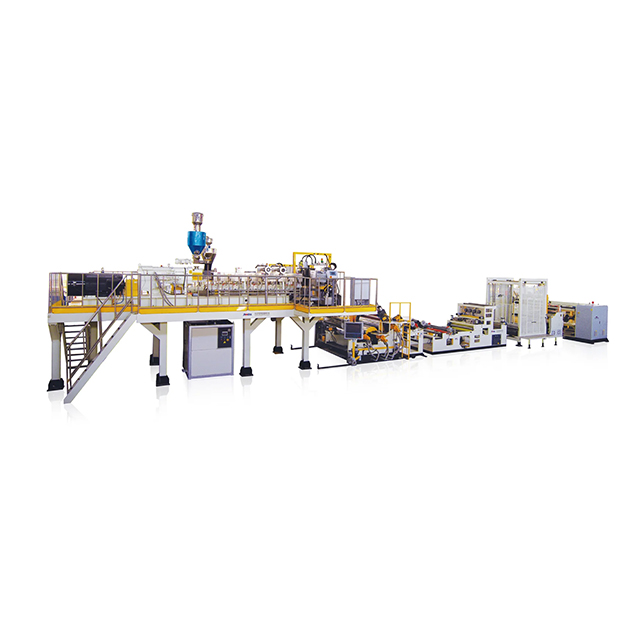

PET/PLA environmental sheet extrusion line: SUZHOU JWELL develops the parallel twin screw extrusion line for PET/PLA sheet, this line equipped with degassing system, and no need drying and crystallizing unit. The extrusion line has the properties of low energy comsuption, simple production process and easy maintenance. The segmented screw structure can reduce the viscosity loss of PET/PLA resin, the symmetrical and thin-wall calender roller highten the cooling effect and improve the capactity and sheet quality. Multi components dosing feeder can control the percentage of virgin material, recycling material and master batch precisely, the sheet is widely used for thermoforming packaging industry.
Main Techncial Parameters
| Model | Equipment advantages | |||
| Single layer | product thickness：0.08-2mm； capacity：400—800kg/h | |||
| Multi layer | 2-5 layers structure can be produced, each layer withdifferent raw materials or colors | |||
| High capacity | 2-3 extruders co-extrusion High-speed line：capacity 1000—3000kg/h | |||
| Model | Extruder model | Products thickness(mm) | Main motor power(kw) | Max extrusion Capacity(kg/h) |
| SIngle layer | JW75/40-1000 | 0.15-1.5 | 132 | 400-500 |
| High-speed single layer | JW75/42-1000 | 0.15-1.5 | 160 | 500-600 |
| Multi layer | JW75&52/40-1000 | 0.15-1.5 | 132/15 | 500-600 |
| Highly-efficient | JW95&65/44-1500 | 0.15-1.5 | 250/75 | 800-1000 |
FAQ
1、Q: What are the main differences between single-screw and twin-screw extrusion lines? How to choose the right model for you?
A: Single screw extruder is suitable for conventional PET sheet production, with high cost performance; twin screw extruder has better mixing effect and is suitable for high filling, recycled or modified PET production. Suzhou Jwell can recommend suitable models according to your raw material characteristics, output requirements (such as 500-2000kg/h) and product precision, and provide free selection consultation.
2、Q: What is the maximum capacity of the production line? What is the energy consumption?
A: The production capacity of JWELL production line covers 300-3000kg/h, depending on the model configuration. We adopt high-efficiency energy-saving design (such as servo drive, heat recovery system), and the energy consumption is 15%-20% lower than the industry standard, and provide energy consumption comparison data for reference.
3、Q: What is the thickness range of the produced sheets? What is the thickness error that can be controlled?
A: The thickness range is 0.1-6mm (customizable). Using JWELL high-precision die head and online thickness gauge, the thickness error can be controlled within ±0.02mm.
4、Q: Why should you choose Suzhou Jwell?
A: We follow Germany type of business heading as the worldwide reliable supplier of plastic extrusion line. We have already provided more than 5000 lines located in all countries because we are providing the lastest technology, qualified machine, reliable component and best after-service. 300 Engineers are travelling in the world throughout year for installation and test of machine, the after-service are free and availble forever. That's why we grow up from 10 staff company to 3500 staff Pioneer of Chinese extrusion machine supplier. Our products are spread all of China and also export to Russia, India, Korea, Indonesia, Middle East, Africa and south America, Spain, Italy, ect. We are received good appraisement from them.
“Excellent Quality and Perfect Product” is JWELL quality guidance, is the direction of the whole company’s member.
“Honesty” is our core thought to make “ Long life JWELL”.
5、Q: How much does it cost?
A: Please fill in your specific requirement in the bottom blank and sent to us, so that we could make a detail quotation for you.
6、Q: How about your after-sale service?
A: When the machines are ready and be sent to your factory, we will sent our engineers to your factory to help your worker to de the installation and train your workers. Above all, we have the maintenance engineers all over the world, who are always ready to go to our customer's factory and provide them with the best after-sale service.
Suzhou Jwell is a PET single screw twin screw sheet extrusion line provider. The company has won unanimous praise. We look forward to further cooperation with you! Welcome to contact our plastic sheet extrusion machine!
Note: The specifications are subject to change without prior notice.
