Description
Product Introduction

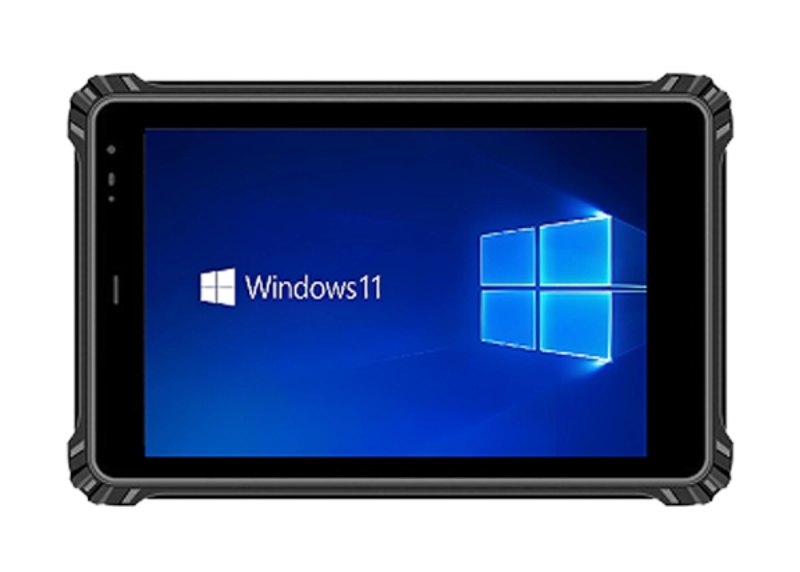

The RT-08NF 8-inch Windows10/11 Rugged Tablet is designed for mobile operations that require a durable computing device, reliable communication, accurate positioning, and flexible system configuration. It features an Intel Celeron N5100 quad-core processor, Windows 10/11 support, an 8-inch LCD display, and an IP67-rated protective design.
The tablet supports multiple communication and positioning options, including Wi-Fi, Bluetooth, GPS, and optional 4G/5G. Its wide operating temperature range of -20°C to 60°C makes it suitable for both indoor and outdoor working environments.
With a 5000mAh embedded polymer lithium-ion battery, sunlight-visible FHD display options, multiple I/O interfaces, and optional fingerprint, NFC, RFID, and scanner modules, RT-08NF can be configured for different professional applications.
Product Features and Selling Points
1. Rugged IP67 Protection
The RT-08NF adopts a dual-color mould design and provides IP67 protection. The rugged construction is suitable for applications where equipment may be exposed to dust, water, drops, and demanding working conditions.
2. Intel Celeron N5100 Processor
The tablet is equipped with an Intel Celeron N5100 CPU with 4 cores and 4 threads. The processor operates at 2.20GHz–2.80GHz and provides computing support for mobile industrial and professional applications.
3. Windows 10/11 Operating System
The device supports Windows 10 and Windows 11. Ubuntu is also available as an optional system, providing greater flexibility for project-specific software and system deployment.
4. Long Battery Endurance
The tablet uses an embedded 7.6V 5000mAh polymer lithium-ion battery. Battery life can reach approximately 8 hours under the stated test condition of 50% volume while playing 1080P local high-resolution video.
5. Wide Operating Temperature
The operating temperature range is -20°C to 60°C, while the storage temperature range is -30°C to 70°C. This makes the tablet suitable for mobile work in changing temperature conditions.
6. Multiple Wireless Communication Options
The tablet supports 802.11a/b/g/n/ac Wi-Fi and Bluetooth 5.1. Optional 4G or 5G communication can be added according to project requirements.
GPS module support is available for applications that require positioning information.
7. Sunlight-Visible Display
The standard display provides 500-nit brightness, with 800-nit and 1000-nit options available. The 8-inch LCD screen supports 800 × 1280 resolution, with 1200 × 1920 available as an optional configuration.
8. 10-Point Touchscreen
The touch panel supports 10-point touch operation and has 7H surface hardness, providing convenient interaction for mobile professional applications.
9. Flexible Memory and Storage
Several memory and storage configurations are available:
-
8GB RAM + 128GB storage
-
16GB RAM + 128GB storage
-
16GB RAM + 256GB storage
The device also supports a TF card with a maximum capacity of 1TB.
10. Multiple Expansion Modules
For different project requirements, the RT-08NF rugged tablet can be configured with optional modules such as 4G/5G communication, fingerprint recognition, NFC/HF/LF, RFID, and 1D/2D scanning modules.
Display and Touchscreen
| Item | Specification |
|---|---|
| Screen Size | 8.0-inch LCD |
| Standard Resolution | 800 × 1280 |
| Optional Resolution | 1200 × 1920 |
| Standard Brightness | 500 nit |
| Optional Brightness | 800 nit / 1000 nit |
| Touch | 10-point touch |
| Touch Hardness | 7H |
Processor, OS, Memory and Storage
| Item | Specification |
|---|---|
| CPU | Intel Celeron N5100 |
| CPU Configuration | 4 Core / 4 Thread |
| CPU Frequency | 2.20GHz–2.80GHz |
| Operating System | Windows 10 / Windows 11 |
| Optional OS | Ubuntu |
| Memory Options | 8GB + 128GB / 16GB + 128GB / 16GB + 256GB |
| TF Card | Maximum 1TB |
Wireless Communication and Positioning
| Function | Specification |
|---|---|
| Wi-Fi | 802.11a/b/g/n/ac |
| Wi-Fi Frequency | 2.4G / 5.8G |
| Bluetooth | Bluetooth 5.1 BLE Class 1 |
| Bluetooth Transfer Distance | 10m |
| GPS | GPS module supported |
| Cellular Communication | Optional 4G / 5G |
Camera and I/O Interfaces
The RT-08NF integrates front and rear cameras together with a range of wired interfaces for peripheral connection and project integration.
| Interface / Function | Specification |
|---|---|
| Front Camera | 5.0MP |
| Rear Camera | 8.0MP |
| Audio | 1 × Φ3.5mm standard earphone interface |
| HDMI | 1 × Micro HDMI |
| USB Type-A | 1 × USB 2.0 |
| USB Type-C | 1 × USB 2.0 |
| Ethernet | 1 × 100Mbps network port |
| DC Input | 1 × DC, 12V/3A |
| Pogo Pin | 1 × 12-Pin Pogo Pin |
| TF | 1 × TF card slot, maximum 1TB |
| SIM | 1 × SIM slot |
Optional Functional Modules
The tablet can be configured with additional modules for specialized applications.
4G/5G Communication
Optional 4G or 5G modules are available for mobile communication requirements where Wi-Fi connectivity is not sufficient.
Fingerprint Recognition
Fingerprint modules can be configured as standard, customized public security fingerprint, FBI fingerprint, or other special fingerprint modules according to project requirements.
NFC, HF and LF
The device supports 14443A, 14443B, 15693, and 125K protocols. The module can be used for ID card or other compatible module integration.
RFID
The RFID option supports 14443A, 14443B, 15693, and 125K low-frequency applications.
Barcode Scanner
Optional 1D/2D scanner modules and other customized scanning modules are available for applications requiring integrated scanning functionality.
Battery and Power
| Item | Specification |
|---|---|
| Battery Type | Polymer lithium-ion battery |
| Battery Voltage | 7.6V |
| Battery Capacity | 5000mAh |
| Battery Design | Embedded |
| Battery Life | Approx. 8 hours under specified test condition |
| Adapter Input | AC100V–240V |
| Adapter Output | DC12V/4A |
Rugged Design and Reliability
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Humidity | 95% non-condensing |
| Protection | IP67 |
| Drop Resistance | 1.2m drop-resistant |
| Drop Test Surface | Composite wooden floor |
| Dimensions | 226 × 145 × 21.8mm |
| Weight | 850g |
| Standard Color | Black |
| Color Options | Customized monochrome or dual-color |
| Certifications | CE, IP67, RoHS, UN38.3, EMC, 3C, MIL-STD-810H |
Application Scenarios
The RT-08NF Windows rugged tablet can be deployed in professional environments that require mobile computing, data collection, communication, positioning, or field operation.
Medical Industry
The compact 8-inch form factor, touchscreen operation, Windows support, camera, and communication interfaces make the tablet suitable for mobile medical-related applications.
Oil & Gas
The rugged construction, IP67 protection, wide operating temperature range, and optional wireless communication can support mobile operations in oil and gas working environments.
Artificial Intelligence
The tablet can serve as a mobile computing and interface device for AI-related equipment and application systems.
Intelligent Manufacturing
Multiple I/O interfaces, Ethernet, wireless communication, touchscreen control, and Windows compatibility make the device suitable for intelligent manufacturing and industrial workflows.
Precise Location
With GPS module support and wireless communication options, the tablet can be used in applications requiring location-related data.
Vehicle Applications
The rugged tablet can be integrated into vehicle-related applications where a compact Windows computing terminal and touchscreen interface are required.
Automation
The device provides multiple communication and interface options for automation equipment and mobile control applications.
Law Enforcement
The rugged enclosure, camera, GPS support, fingerprint options, and wireless communication modules provide configuration flexibility for professional field applications.
Outdoor Patrol
IP67 protection, wide temperature operation, sunlight-visible display options, GPS support, and optional 4G/5G make the tablet suitable for outdoor mobile patrol tasks.
Why Choose the RT-08NF for B2B Projects?
The RT-08NF combines an 8-inch rugged form factor with Windows 10/11 compatibility, Intel Celeron N5100 processing, multiple communication interfaces, GPS positioning support, and configurable expansion modules. Its IP67 protection, 1.2-meter drop resistance, wide operating temperature range, and optional high-brightness display are designed around mobile professional use.
For projects requiring specific communication, biometric identification, RFID, NFC, or scanning functions, the available optional modules provide additional configuration flexibility.
Customization and Project Configuration
Different project requirements may require different operating systems, memory and storage configurations, display brightness, communication modules, fingerprint modules, RFID/NFC functions, scanner modules, or exterior colors.
The RT-08NF 8-inch rugged tablet can therefore be configured according to the requirements of the intended application and deployment environment. Buyers can discuss required hardware configurations and optional modules with Fushizk Technology Co.,Ltd before placing a project order.
Software and Technical Support
Drivers, firmware, manuals, and application software are available to help users obtain device support and technical information. These resources can assist with device deployment, software integration, project development, and operation and maintenance.
Supplier Information
Fushizk Technology Co.,Ltd provides rugged tablet solutions for professional applications requiring durable mobile computing equipment and configurable hardware functions. The RT-08NF is available for B2B project requirements with multiple memory, display, communication, positioning, and expansion options.
For buyers looking for an 8-inch Windows rugged tablet with IP67 protection, optional 4G/5G, GPS, and multiple expansion functions, RT-08NF provides a configurable platform for industrial, field, vehicle, automation, medical, and other professional applications.
