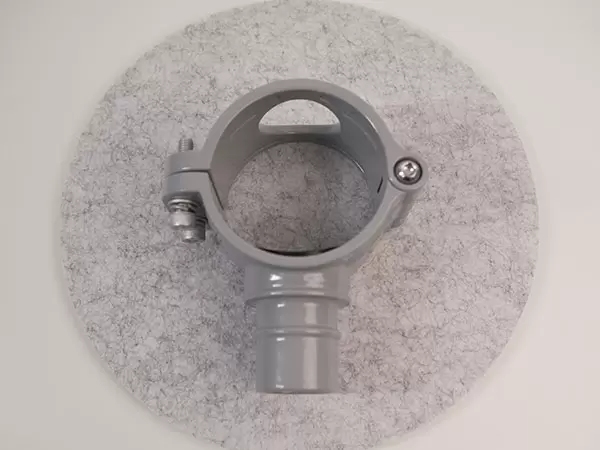

180° Quick Drop

Description

The 180° Quick Drop is a high-performance industrial connection component designed for efficient directional change and secure pipeline integration in compressed air, vacuum, and inert gas systems. Engineered for stability, durability, and fast installation, it is widely used in modern industrial fluid transport networks requiring reliable 180-degree flow transition.

Product Overview

The 180° Quick Drop is developed for applications that require compact reverse-direction pipeline routing while maintaining stable pressure performance and sealing integrity. It supports multiple industrial gases and is suitable for continuous operation in demanding environments.

With a robust structure and precision assembly design, it ensures efficient installation, reduced maintenance time, and long-term operational reliability.

Key Features

• 180-degree directional quick connection design for optimized pipeline layout

• Compatible with compressed air, vacuum systems, and inert gases (helium, nitrogen, argon, etc.)

• Stable working pressure up to 16 bar

• Wide temperature resistance range: -20°C to +80°C / -60°C to +180°C

• Corrosion-resistant and wear-resistant structure

• Fast assembly design for reduced installation time

• Reliable sealing performance under high-frequency operation

Material Construction

• Sprayed aluminum alloy structure

• Stainless steel components for enhanced durability

• Engineering plastics for lightweight and high-strength performance

These materials ensure excellent corrosion resistance, mechanical strength, and long service life in industrial environments.

Product Parameters

Application Fields

The 180° Quick Drop is suitable for a wide range of industrial systems, including:

• Compressed air piping systems

• Vacuum transport systems

• Industrial gas distribution networks

• Automation and manufacturing equipment

• Energy and process engineering systems

• Large-scale industrial pipeline layouts

Company Introduction

Suzhou Jieyou Fluid Technology Co., Ltd., founded in August 2019, is an innovative enterprise specializing in the R&D, production, sales, and installation of advanced fluid transport systems.

The company’s product portfolio includes UPIPE aluminum alloy piping systems and Liq-pipe solutions, widely recognized for safety, corrosion resistance, environmental performance, and long-term reliability.

With strong technical capabilities and multiple patents, the company has obtained certifications including ISO 9001, ISO 14001, CE, and high-tech enterprise qualification. Its products are exported globally across the United States, Europe, Southeast Asia, the Middle East, and Africa.

System Advantages

• Safe and reliable fluid transport performance

• Fast installation and convenient maintenance

• Energy-efficient system design

• Strong anti-corrosion capability

• Clean and environmentally friendly operation

Ten-Year Quality Assurance

UPIPE series products are covered by a 10-year quality guarantee, offering free replacement or repair after proper installation, testing, and acceptance.

Warranty Exclusions Include (but are not limited to):

• Expired warranty period unless an extended agreement is signed

• Damage caused by improper installation or failure to follow official manuals

• Operation beyond specified environmental or technical conditions

• Incorrect storage, handling, or maintenance practices

• External impact, corrosion, or misuse

• Unauthorized modifications or system alterations

Summary

The 180° Quick Drop provides a reliable, high-efficiency solution for industrial fluid and gas pipeline systems requiring stable 180-degree directional transition. With durable materials, precise engineering, and fast installation design, it ensures long-term performance in demanding industrial environments.
