Description

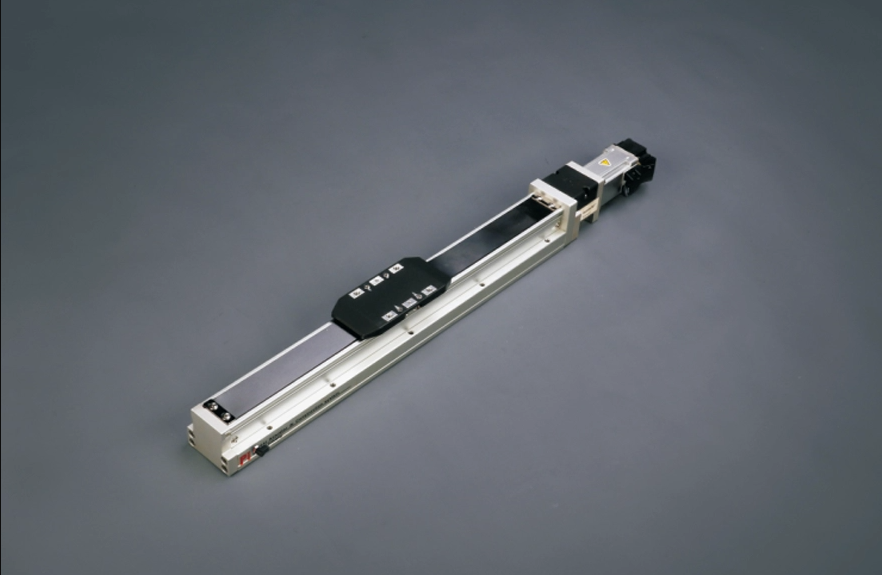

GRC Series-Lightweight and Long Lifespan GRC5
Body width：54mm
Repeatability：±0.01mm
Horizontal Load：30kg
Vertical Load：10kg
Maximum Speed：1000mm/s
Travel Range：50-800mm
Set the motor acceleration and deceleration to0.2seconds.
The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.
Delivery time: 7-10 days
Rigid reinforcement of sliding seat
The body and slide are integrally formed, which improves the problem of poor rigidity and reduces the width, making the installation space of the equipment smaller.
Easy maintenance
Both sides of the entire series have external oil injection nozzles that can be directly filled with oil without the need for a cover. Special steel belt tie design can reduce hair and can be used in cleanroom environments.
Assembly, time-saving, and convenient
It can be fixed from top to bottom or from bottom to top without dismantling the steel strip.
Add installation reference surface support on the side of the body.There is a positioning PIN hole at the bottom of the body.
Add installation reference surface support on the side of the body.There is a positioning PIN hole at the bottom of the body.
The strength increases and the smoothness improves
Due to the use of aluminum body structure, the strength of the body is significantly increased. Compared with RMH5S/6S, the steel track is embedded in the aluminum body and then ground, thus improving the accuracy of the walking height and straightness to below ± 0.02MM (compared with RMH10/12)
