Description
Product Overview

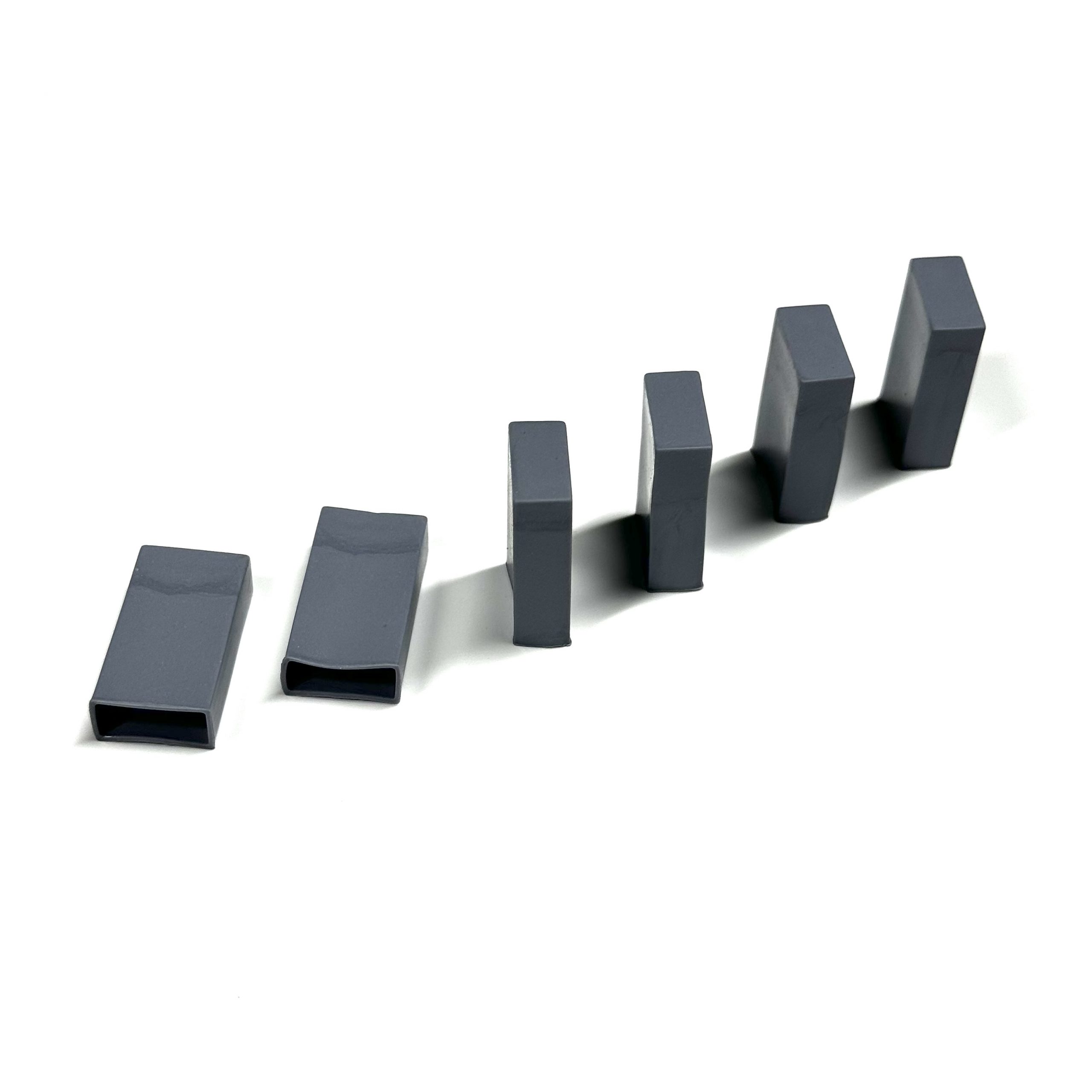

The MT-TO220A Silicone Cap Sleeve is a high-performance thermal interface and insulation component designed for power semiconductor heat management. Manufactured using a composite structure of silicone elastomer and fiberglass reinforcement, it is engineered through a specialized molding process to achieve stable thermal conductivity, high dielectric strength, and reliable mechanical protection.
This product is widely applied in electronic assemblies where heat dissipation, electrical isolation, and vibration resistance must be maintained simultaneously. It is particularly suitable for mounting and protecting heating components such as transistors, diodes, and IGBT devices. When installed, it is typically positioned directly onto heat pipes or heat sinks to enhance thermal transfer efficiency while ensuring electrical safety.
Material Composition and Structural Design
The MT-TO220A silicone cap sleeve adopts a carefully optimized material system combining high-grade silicone rubber matrix with reinforced filler technology. The inclusion of fiberglass improves dimensional stability and mechanical strength, while the silicone base ensures flexibility and excellent thermal interface conformity.
This hybrid structure allows the sleeve to maintain stable performance under repeated thermal cycling conditions. It can accommodate surface irregularities between semiconductor devices and cooling structures, ensuring consistent contact pressure and reducing thermal resistance at the interface.
The material is also engineered for shock absorption, helping to protect sensitive electronic components from mechanical stress and vibration during operation.
Key Functional Advantages
The MT-TO220A silicone cap sleeve is designed to meet the demanding requirements of modern power electronics systems. Its primary advantages include:
-
Excellent thermal conductivity enabling efficient heat transfer from semiconductor devices to heat sinks
-
High electrical insulation performance ensuring safe operation in high-voltage environments
-
Strong mechanical resilience providing shockproof and vibration-resistant protection
-
Ease of installation allowing direct mounting on heat pipes without complex fastening structures
-
Stable long-term performance under continuous thermal and electrical load conditions
These characteristics make it a reliable solution for compact electronic designs where space efficiency and thermal stability are critical.
Thermal and Electrical Performance
The MT-TO220A is engineered to balance thermal conductivity with dielectric insulation. With a thermal conductivity rating of approximately 1.0 W/m·K, it ensures effective heat dissipation from power devices while maintaining electrical separation between conductive surfaces.
Its dielectric strength of up to 3.0 kV/mm provides strong insulation capability, making it suitable for high-power switching environments. The material also exhibits low thermal resistance, enabling faster heat flow and improved overall system efficiency.
The flame-retardant rating of UL-94 V-0 ensures safety compliance in demanding industrial and electrical applications, reducing fire risk during abnormal operating conditions.
Product Parameters
| Property | Standard | Unit | MT-TO220A Value |
|---|---|---|---|
| Color | Visual | — | Gray / Blue / Yellow |
| Specific Gravity | ASTM D792 | g/cm³ | 1.7 |
| Hardness | ASTM D2240 | A | 85 ± 5 |
| Tensile Strength | ASTM D412 | kg/cm² | >180 |
| Elastic Modulus | ASTM D412 | Pa | 1.8 × 10¹¹ |
| Continuous Temperature Range | — | °C | -30 to 200 |
| Voltage Endurance | ASTM D149 | kV/mm | 3.0 |
| Flame Rating | UL-94 | — | V-0 |
| Thermal Conductivity | ASTM D5470 | W/m·K | 1.0 |
| Thermal Resistance | ASTM D5470 | °C/W | 0.28 |
These parameters demonstrate the material’s ability to maintain stable mechanical and thermal performance under high-load conditions, ensuring reliability in long-term industrial use.
Application Areas
The MT-TO220A silicone cap sleeve is widely used in power electronics and thermal management systems. Its typical application scenarios include:
-
Heating transistors and power switching devices
-
Diodes and triode semiconductor components
-
IGBT modules and field-effect transistors
-
Heat pipe mounting systems in compact electronic assemblies
-
Industrial power control and energy conversion equipment
In these applications, the sleeve acts as both a thermal interface enhancer and an electrical insulation barrier, ensuring safe and efficient operation of high-power components.
Dimensional Specifications (TO-220A Standard)
| Dimension | Value (mm) |
|---|---|
| DIM A | 21.5 ± 0.5 |
| DIM B | 11.5 ± 0.5 |
| DIM C | 5.9 ± 0.3 |
| DIM D | 0.6 ± 0.1 |
The standardized TO-220A structure ensures compatibility with a wide range of semiconductor packages, making integration into existing thermal management systems straightforward and efficient.
Installation and Usage Guidance
The MT-TO220A silicone cap sleeve is designed for direct installation onto heat pipes or heat sinks. During assembly, it should be positioned to ensure full surface contact between the semiconductor device and the cooling structure.
No complex mechanical fastening is required, which simplifies assembly procedures and reduces installation time. The elastic properties of the silicone material allow it to conform tightly to contact surfaces, improving thermal interface efficiency while maintaining electrical isolation.
Proper installation ensures reduced thermal resistance and improved heat dissipation performance, contributing to extended service life of electronic components.
Reliability and Environmental Resistance
The MT-TO220A is engineered for stable performance in harsh operating environments. It maintains structural integrity across a wide temperature range from -30°C to 200°C, making it suitable for both low-temperature storage conditions and high-temperature operational environments.
The material resists aging, cracking, and deformation under continuous thermal cycling. Its flame-retardant properties further enhance operational safety in electrical systems where overheating risks may occur.
Additionally, its resistance to mechanical shock makes it suitable for applications exposed to vibration or frequent thermal expansion and contraction cycles.
Industrial Value and Engineering Significance
In modern electronic thermal design, achieving efficient heat dissipation while maintaining electrical insulation is a key engineering challenge. The MT-TO220A silicone cap sleeve addresses this requirement by integrating thermal conduction, insulation, and mechanical protection into a single component.
By reducing reliance on multiple separate insulating and mounting parts, it simplifies system architecture and improves assembly consistency. This contributes to more stable thermal performance and enhanced operational reliability in power electronic systems.
Zesong provides engineered thermal interface solutions designed to support advanced electronic cooling requirements, ensuring stable performance in demanding industrial environments.
FAQ
Q1: Can MT-TO220A replace mica sheets or thermal grease?
It can replace traditional insulation materials in many semiconductor mounting applications while offering easier installation and stable thermal performance.
Q2: Is it suitable for high-voltage environments?
Yes, with dielectric strength up to 3.0 kV/mm, it is suitable for most industrial power electronic applications.
Q3: What is the maximum operating temperature?
The continuous operating temperature range is -30°C to 200°C.
Q4: Does it require additional adhesive or fasteners?
No, it is designed for direct installation onto heat pipes or heat sinks without additional fastening components.
Q5: What devices are compatible with this sleeve?
It is compatible with TO-220 package transistors, diodes, and IGBT components commonly used in power electronics systems.
