Description

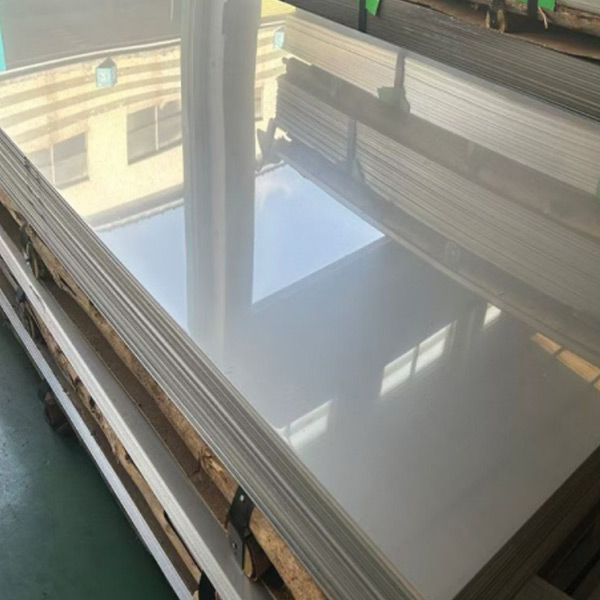

Stainless Steel Clad Alloy Composite Plate
Metallurgically fused bimetallic clad plate combining structural alloy substrate and corrosion-resistant stainless steel cladding. Produced by explosion welding & hot roll bonding. Combine stainless steel with nickel alloy, copper alloy, titanium alloy and low alloy steel, customized for ultra-high temperature, strong acid, chloride and special anti-corrosion working conditions.
·Base Substrate: 304，316L… stainless steel
·Cladding Layer: Inconel 718,Inconel 625，Incoloy 800/825， Monel 400, Hastelloy C276 …alloys
Custom thickness ratio of substrate & cladding layer is available per drawing requirements.
Main Alloy Clad Stainless Steel Plates
| Single-sided Clad | Double-sided Clad | ||||||
| Inconel 718+304 | Inconel 718+304 +Inconel 718 | ||||||
| Inconel 718+316L | Inconel 718+316L+Inconel 718 | ||||||
| Inconel 625+304 | Inconel 625+304+Inconel 625 | ||||||
| Inconel 625+316L | Inconel 625+316L+Inconel 625 | ||||||
| Incoloy 800+304 | Incoloy 800+304+Incoloy 800 | ||||||
| Incoloy 825+304 | Incoloy 825+304+Incoloy 825 | ||||||
| Monel 400+304 | Monel 400+304+Monel 400 | ||||||
| Hastelloy C276 +316L | Hastelloy C276 +316L+Hastelloy C276 | ||||||
| … | … |
Product Specifications：
| Cold-rolled | Hot-rolled | Heavy plate | ||||||
| Thickness (mm) | 0.5-3.0 | 3.0-14.0 | 6.0-120.0 | |||||
| Width(mm) | 1030/1250/1530 | 1030/1250/1530 | 1000-3000 | |||||
| Cladding Ratio | 10%+80%+10%/5%+90%+5% or customized | 1+4/1+5/1+7/1+9/1+11/10%+80%+10%/5%+90%+5% or customized | 5%-50% | |||||
| Standard | ASTM A264，EN 13445-2 ，JIS G3601 ，GB/T 8165 | |||||||
Production & Quality Control
·Production line：Hot rolling composite workshop, support bulk order & small trial order
·Complete strict inspection flow:
Ultrasonic Testing (UT) 100% full scanning for bonding integrity
Mechanical test: shear strength, bending, tensile performance
Chemical composition spectral analysis for both base & cladding stainless layers
Hardness inspection & metallographic interface observation
Corrosion resistance spot test for cladding layer
·Available certifications & documents: SGS, BV, TUV third-party test reports, full MTC material test certificates, ultrasonic inspection records.
·Packing: Waterproof plastic film + wooden pallet, sea-worthy export package to avoid rust during long ocean transportation
Main Industrial Applications
·Petrochemical & High-Corrosion Vessel:Reactors, acid storage tanks, cracking furnaces using Hastelloy, Incoloy clad stainless plate for strong acid & high-temperature media.
·Marine & Seawater Desalination:Titanium-stainless clad plate for seawater heat exchangers, offshore anti-corrosion liners resisting chloride erosion.
·Thermal Energy & Power Equipment:Copper-stainless clad composite for heat exchange components; nickel alloy clad stainless plate for boiler high-temperature liners.
·Chlor-Alkali & Fine Chemical Industry:Monel, Hastelloy composite plates for chlorine, caustic soda production equipment.
·Cryogenic Pressure Vessel:Low alloy steel + duplex stainless clad plate for liquid gas storage tanks under low temperature working environment.
·Metallurgical & High-Temperature Furnace Equipment:Inconel clad stainless plate for high-temperature oxidation resistant furnace linings.
